67 Concave Root Surface

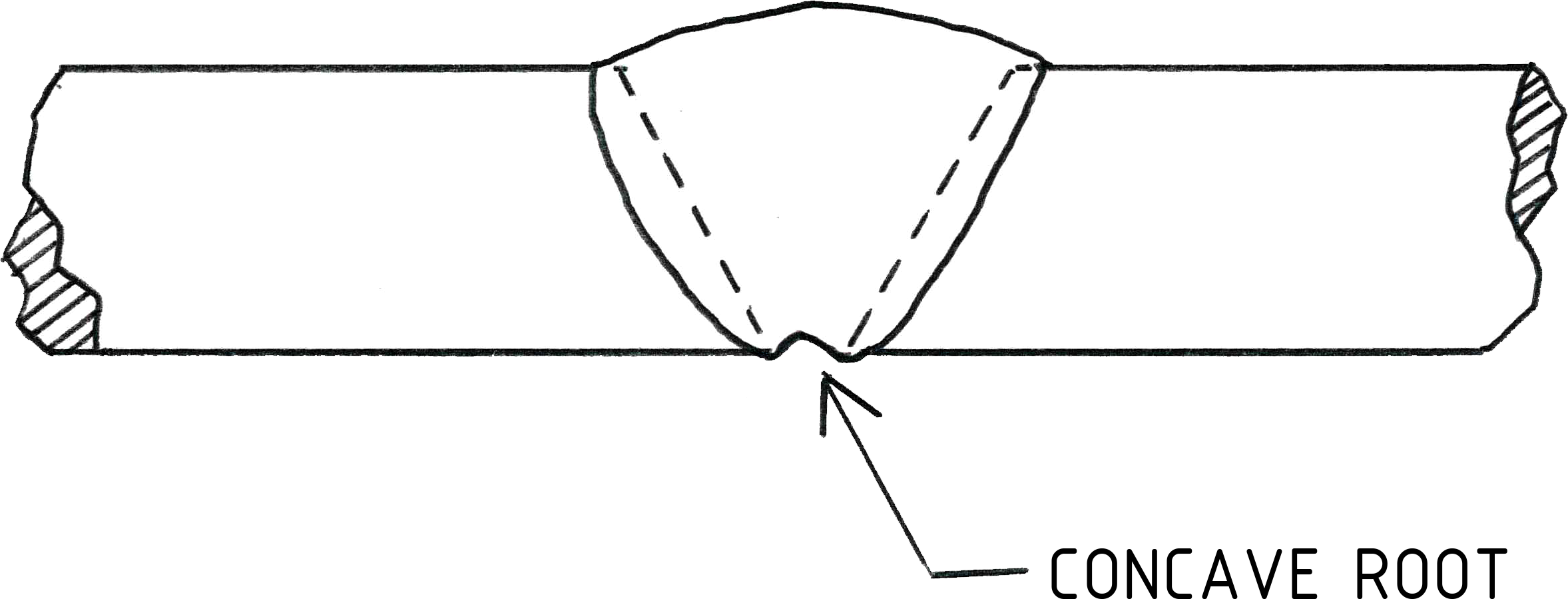

A concave root surface is a depression in the weld extending below the surface of the adjacent base metal caused by an underfill in the root pass of a weld. If considered a defect, the surface may be suitably prepared or cleaned and additional weld metal added.

Concave Root Surface Prevention

Concave root surfaces are prevented in butt welds by reducing the root opening of the weld.
