8 Triangles
Learning Objectives
Objectives:
- Determine the types of triangle
- Find the measure of unknown angles of a triangle
- Use the Pythagorean Theorem
Types of Triangles
|
Definition |
Illustration |
Example |
|
A triangle containing one right angle is a right triangle. The [latex]\right[/latex] symbol in one angle indicates that the angle is a right angle.
|
|
|
|
A triangle in which all the angles are acute is an acute triangle. |
|
|
|
A triangle containing one obtuse angle is an obtuse triangle. |
|
|
|
A triangle with no congruent sides is a scalene triangle. |
|
|
|
A triangle with at least two congruent sides is an isosceles triangle. |
|
|
|
A triangle with all sides congruent is an equilateral triangle. |
|
|
The Sum of the Angles of a Triangle
The angles measures of a triangle sum to 180 degrees.
Examples
Find the unknown angle(s) in the given figures.
Solution:
Solution:

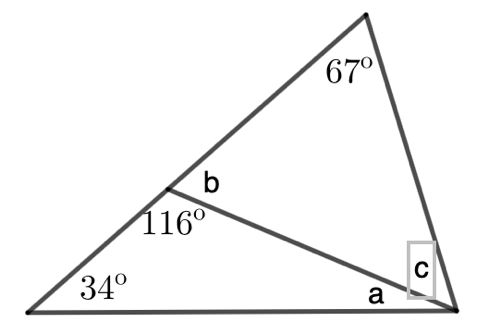

Angle a must be 180-34-116=30, since angle b is par tof a straight angle, its measure is 180-116=64. Finaly angle c is found, 180-64-67=49.
Side Lengths in a Right Triangle

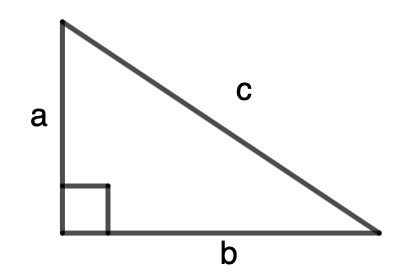

The Pythagorean Theorem gives the relationship between the sides of a right triangle.
Examples

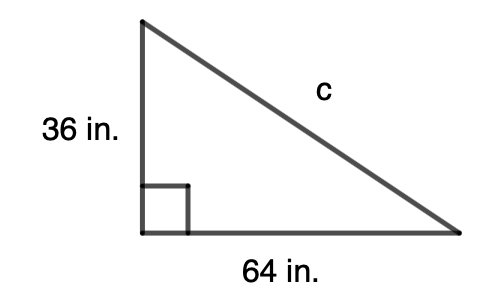

Find the unknown side of the given triangles. Round your answer to two decimal places as necessary.
Solution:

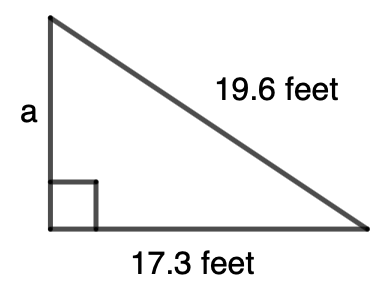

2.
Solution:
3.

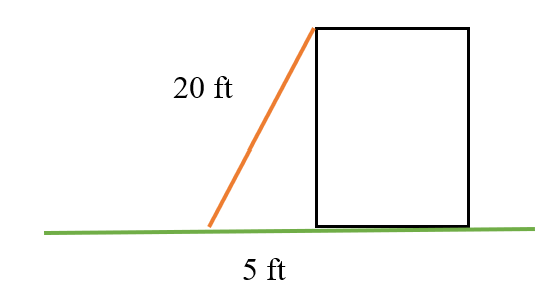

A painter places a 20-foot ladder against the side of a house. The base of the ladder is 5 feet from the side of the house. How far up the house is the top of the ladder?
Solution:
Let a be the side of the house. Thus
