7 Oceans and Coastal Environments

The goals and objectives of this chapter are to:

  • Describe the significance of the ocean and how it influences weather and climate.
  • Explain the different layers of the ocean.
  • Understand the basic physics of ocean waves.
  • Compare and contrast the differences between surface and deep ocean currents.

Environmental Questions

  • Based on scientific data, some scientists have hypothesized that if enough ice from Greenland melts, the Gulf Stream might be shut down. The logic is that too much fresh water could flow into the ocean, changing the salt water it would disrupt the salt and fresh water distribution. Why might this happen and how could it influence places like Europe?

SIGNIFICANCE OF THE OCEANS

The oceans make up 70 percent of the planet and contains 97 percent of all the water on Earth. It also makes up the vast majority of water stores the majority of the planet’s moisture, terrestrial energy, and heat from the Sun. This energy is transferred between the equator and the two poles by larger surface currents by winds and deep ocean currents driven by differences in ocean density. It also provides the moisture and energy for storm systems and ultimately global climates. Phytoplankton, microscopic plants and animals in the oceans provide the foundation of the global food web of species. The earth’s oceans are so vital for life that over 40 percent of the world’s population live near coastal areas.


The Blue Marble, captured by NASA in 2001.

MODERATE CLIMATES

As terrestrial creatures, humans think of the importance of the planet’s land surfaces, yet Earth is a planet consisting of 70 percent water. From space, the dominance of water is obvious because most of it is stored in Earth’s oceans. Earth would not be the same planet without its oceans. The oceans, along with the atmosphere, keep Earth’s surface temperatures fairly constant worldwide. Some places on Earth reach as cold as -7 °Celsius, whereas other places reach as hot as 55 °Celsius. Yet on other planets like Mercury, temperatures range from -180 °Celsius to 430 °Celsius. The oceans, along with the atmosphere, distribute heat around the planet. The oceans absorb heat near the equator and then transport that solar energy to polar regions. The oceans also moderate climate within a region. At the same latitude, the temperature range is smaller along coastal areas compared to areas farther inland. Along coastal areas, summer temperatures are not as hot, and winter temperatures are not as cold, because water takes a long time to heat up or cool down.

BIOLOGICALLY RICH

Krill are a key food source.

The oceans are an essential part of Earth’s water cycle. Since they cover so much of the planet, most evaporation comes from the ocean and most precipitation falls on the oceans. The oceans are also home to an enormous amount of life. That is, they have tremendous biodiversity. Tiny ocean plants create the base of a food web that supports all sorts of life forms. Marine life makes up the majority of all biomass on Earth. (Biomass is the total mass of living organisms in a given area.) These organisms supply us with food and even the oxygen created by marine plants.


COMPOSITION OF OCEAN WATER

Chemical Composition of Seawater

Water is a polar molecule so it can dissolve many substances such as salts, sugars, acids, bases, and organic molecules. Where does the salt in seawater come from? As water moves through rock and soil on land it picks up ions. This is the flip side of weathering. Salts comprise about 3.5 percent of the mass of ocean water, but the salt content or salinity is different in different locations. In places like estuaries, seawater mixes with fresh water, causing salinity to be much lower than average. Where there is lots of evaporation but little circulation of water, salinity can be much higher. The Dead Sea has 30 percent salinity – nearly nine times the average salinity of ocean water. It is called the Dead Sea because nearly nothing can survive within it because of its salinity. Earthquide has an interactive ocean maps, which can show salinity, temperature, nutrients, and other characteristics. Differences in water density are responsible for deep ocean currents. With so many dissolved substances mixed in seawater, what is the density (mass per volume) of seawater relative to fresh water? Water density increases as: salinity increases; temperature decreases; pressure increases.

The salinity of ocean water depending on the location.  In general, salinity increases as you move away from continents and into the center of subtropical high pressure zones.

Variability of Seawater Salinity at the Ocean Surface

OCEAN CURRENTS

Ocean currents are described as either surface currents or as deep ocean currents. The two types of currents are influenced by different forces.

Surface Ocean Currents

SURFACE OCEAN CURRENTS

Surface ocean currents are currents in the upper few hundred meters of the ocean. Recall the average depth of the ocean is 12,000 m so these surface waters are a small part of the overall volume, but the surface of the ocean is where there’s interaction with the atmosphere thus leading to weather and climate interaction. Surface water moves in predictable ways for thousands of kilometers. These surface currents do not depend on weather; they remain unchanged even in large storms because they depend on factors that do not change. Surface currents are created by three things: global wind patterns, the rotation of the Earth, and the shape of the ocean basins.

Surface currents are extremely important because they distribute heat around the planet and are a major factor influencing climate around the globe.

Surface currents play an enormous role in Earth’s climate. Even though the equator and poles have very different climates, these regions would have more extremely different climates if ocean currents did not transfer heat from the equatorial regions to the higher latitudes.

The Gulf Stream is a river of warm water in the Atlantic Ocean, about 160 kilometers wide and about a kilometer deep. Water that enters the Gulf Stream was heated as it traveled along the equator. The warm water then flows up the east coast of North America and across the Atlantic Ocean to Europe. The energy the Gulf Stream transfers is enormous: more than 100 times the world’s human energy demand.

The Gulf Stream’s warm waters raise temperatures in the North Sea, which raises the air temperatures over land between 3 to 6 °C (5 to 11°F). London, U.K., for example, is at the same latitude as Quebec, Canada. However, London’s average January temperature is 3.8 °C (38 °F), while Quebec’s is only -12 °C (10 °F). Because air traveling over the warm water in the Gulf Stream picks up a lot of water, London gets a lot of rain. In contrast, Quebec is much drier and receives its precipitation as snow.

GLOBAL WIND CURRENTS

Winds on Earth are either global or local. Global winds blow in the same directions all the time and are related to the unequal heating of Earth by the Sun, that is that more solar radiation strikes the equator than the polar regions, and the rotation of the Earth called the Coriolis effect. The causes of the global wind patterns are described in detail the section about atmosphere. Water in the surface currents is pushed in the direction of the major wind belts:

  • trade winds: east to west between the equator and 30° North and 30° South
  • westerlies: west to east in the middle latitudes
  • polar easterlies: east to west between 50° and 60° north and south of the equator and the north and south pole

ROTATION OF THE EARTH

Wind is not the only factor that affects ocean currents. The Coriolis effect describes how Earth’s rotation steers winds and surface ocean currents. The Coriolis effect causes freely moving objects to appear to move to the right in the Northern Hemisphere and to the left in the Southern Hemisphere. The objects themselves are actually moving straight, but the Earth is rotating beneath them, so they seem to bend or curve.

An example might make the Coriolis effect easier to visualize. If an airplane flies 500 miles due north, it will not arrive at the city that was due north of it when it began its journey. Over the time it takes for the airplane to fly 500 miles, that city moved, along with the Earth it sits on. The airplane will therefore arrive at a city to the west of the original city (in the Northern Hemisphere), unless the pilot has compensated for the change. So to reach his intended destination, the pilot must also veer right while flying north. Surface ocean currents in the northern hemisphere tend to rotate clockwise and in the southern hemisphere will rotate counterclockwise around the subtropical high pressure center.

As wind or an ocean current moves, the Earth spins underneath it. As a result, an object moving north or south along the Earth will appear to move in an arc. Winds and currents moving away from the equator, towards the poles, will move faster than the ground below since they departed from a region that was rotating faster than the destination region.



SHAPE OF THE OCEAN BASIN

General Location of the Five Major Surface Ocean Currents.

When a surface current collides with land, the current must change direction. In the figure below, the Atlantic South Equatorial Current travels westward along the equator until it reaches South America. Near Brazil, some of it goes north and some goes south. Because of Coriolis effect, the water goes right in the Northern Hemisphere and left in the Southern Hemisphere. You can see on the map below the major surface ocean currents that the surface ocean currents create loops called gyres. The Antarctic Circumpolar Current is unique because it travels uninhibited around the globe. Why is it the only current to go all the way around?

CONTINENTAL MARGIN

Ocean Floor Near Ohau, HI

Recall from the chapter on Plate Tectonics that the ocean floor is not flat. Mid-ocean ridges, deep sea trenches, and other features all rise sharply above or plunge deeply below the abyssal plains. In fact, Earth’s tallest mountain is Mauna Kea volcano, which rises 10,203 m (33,476 ft.) from the Pacific Ocean floor to become one of the volcanic mountains of Hawaii. The deepest canyon is also on the ocean floor, the Challenger Deep in the Marianas Trench, 10,916 m (35,814 ft). The mapping of the ocean floor and coastal margins is called bathymetry. The continental margin is the transition from the land to the deep sea or, geologically speaking, from continental crust to oceanic crust. More than one-quarter of the ocean basin is continental margin.

LOCAL CURRENTS

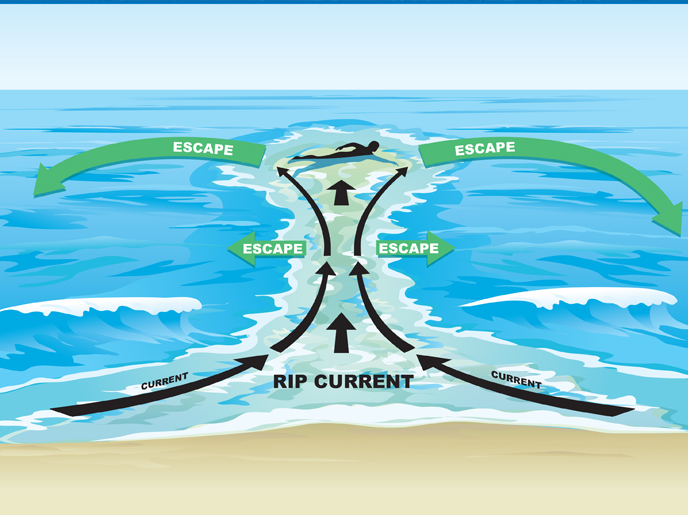

The surface currents described above are all large and unchanging. Local surface currents are also found along shorelines. Two are long shore currents and rip currents. Rip currents are potentially dangerous currents that carry large amounts of water offshore quickly. Look at the rip-current animation to determine what to do if you are caught in a rip current.  Each summer in the United States at least a few people die when they are caught in rip currents.

DEEP CURRENTS

The Ocean Conveyor Belt Showing surface and deep currents.

Thermohaline circulation drives deep ocean circulation. Thermo means heat and haline refers to salinity. Differences in temperature and in salinity change the density of seawater. So thermohaline circulation is the result of density differences in water masses because of their different temperature and salinity. What is the temperature and salinity of very dense water? Lower temperature and higher salinity yield the densest water. When a volume of water is cooled, the molecules move less vigorously so same number of molecules takes up less space and the water is denser. If salt is added to a volume of water, there are more molecules in the same volume so the water is denser.

Changes in temperature and salinity of seawater take place at the surface. Water becomes dense near the poles. Cold polar air cools the water and lowers its temperature, increasing its salinity. Fresh water freezes out of seawater to become sea ice, which also increases the salinity of the remaining water. This very cold, very saline water is very dense and sinks. This sinking is called downwelling.  A significant amount of downwelling occurs north of Scandinavia. The North Atlantic Drift moves through the large gap between Greenland and Scandinavia. This gap allows more water to move into the Arctic Ocean from the Atlantic Ocean, then c.  There is a much smaller gap in the Bering Strait so relatively little water moves from the north Pacific Ocean into the Arctic Ocean.

Two things then happen. The dense water pushes deeper water out of its way and that water moves along the bottom of the ocean. This deep water mixes with less dense water as it flows. Surface currents move water into the space vacated at the surface where the dense water sank. Water also sinks into the deep ocean off of Antarctica. Since unlimited amounts of water cannot sink to the bottom of the ocean, water must rise from the deep ocean to the surface somewhere. This process is called upwelling.

Generally, upwelling occurs along the coast when wind blows water strongly away from the shore. This leaves a void that is filled by deep water that rises to the surface. Upwelling is extremely important where it occurs. During its time on the bottom, the cold deep water has collected nutrients that have fallen down through the water column. Upwelling brings those nutrients to the surface. Those nutrient support the growth of plankton and form the base of a rich ecosystem. California, South America, South Africa, and the Arabian Sea all benefit from offshore upwelling.

Upwelling also takes place along the equator between the North and South Equatorial Currents. Winds blow the surface water north and south of the equator so deep water undergoes upwelling. The nutrients rise to the surface and support a great deal of life in the equatorial oceans.


LAYERS OF THE OCEAN

Depths and Regions of Oceans.
In 1960, two men in a specially designed submarine called the Trieste descended into a submarine trench called the Challenger Deep (10,910 meters). The average depth of the ocean is 3,790 m, a lot more shallow than the deep trenches but still an incredible depth for sea creatures to live in. There are three major factors that make the deep ocean hard to inhabit: the absence of lightlow temperature, and extremely high pressure.

VERTICAL DIVISIONS

To better understand regions of the ocean, scientists define the water column by depth. They divide the entire ocean into two zones vertically, based on light level. Large lakes are divided into similar regions. Sunlight only penetrates the sea surface to a depth of about 200 m, creating the photic zone (consisting of the Sunlight Zone and Twilight Zone). Organisms that photosynthesize depend on sunlight for food and so are restricted to the photic zone. Since tiny photosynthetic organisms, known as phytoplankton, supply nearly all of the energy and nutrients to the rest of the marine food web, most other marine organisms live in or at least visit the photic zone. In the aphotic zone (consisting of the Midnight Zone and the Abyss) there is not enough light for photosynthesis. The aphotic zone makes up the majority of the ocean, but has a relatively small amount of its life, both in diversity of type and in numbers.

HORIZONTAL DIVISIONS

The seabed is also divided into the zones described above, but the ocean itself is also divided horizontally by distance from the shore. Nearest to the shore lies the intertidal zone, the region between the high and low tidal marks. This hallmark of the intertidal is change, where water is in constant motions from ocean waves, tides, and currents. The land is sometimes under water and sometimes is exposed. The neritic zone is from low tide mark and slopes gradually downward to the edge of the seaward side of the continental shelf. Some sunlight penetrates to the seabed here. The oceanic zone is the entire rest of the ocean from the bottom edge of the neritic zone, where sunlight does not reach the bottom.


WAVES


Ocean water is constantly in motion: north-south, east-west, alongshore, and vertically. Seawater motions are the result of waves, tides, and currents. Ocean movements are the consequence of many separate factors: windtidesCoriolis effectwater density differences, and the shape of the ocean basinsWaves have been discussed in previous chapters in several contexts: seismic waves traveling through the planet, sound waves traveling through seawater, and ocean waves eroding beaches. Waves transfer energy and the size of a wave and the distance it travels depends on the amount of energy that it carries.

WIND WAVES

Ocean waves originate from steady winds or high storm winds over the water. Sometimes these winds are far from where the ocean waves are seen. The largest wind waves form when the wind is very strong, blows steadily for a long time, and blows over a long distance. The wind could be strong, but if it gusts for just a short time, large waves won’t form. Wind blowing across the water transfers energy to that water. The energy first creates tiny ripples that create an uneven surface for the wind to catch so that it may create larger waves. These waves travel across the ocean out of the area where the wind is blowing.

remember that a wave is a transfer of energy. Water molecules in waves make circles or ellipses. Energy transfers between molecules but the molecules themselves mostly bob up and down in place. The Internet has a variety of animations to help explain the concept of wave action. In this animation, a water bottle bobs in place like a water molecule. An animation of motion in wind waves from the Scripps Institution of Oceanography. Here is an animation of a deep water wave is seen here. Notice the circular motion of water as wave energy transfers through it. Compare that to the wave action in shallow waters using this animation.

Waves break when they become too tall to be supported by their base. This can happen at sea but happens predictably as a wave moves up a shore. The energy at the bottom of the wave is lost by friction with the ground so that the bottom of the wave slows down but the top of the wave continues at the same speed. The crest falls over and crashes down. Some of the damage done by storms is from storm surges. Water piles up at a shoreline as storm winds push waves into the coast. Storm surge may raise sea level as much as 7.5 m (25 ft), which can be devastating in a shallow land area when winds, waves, and rain are intense.

TSUNAMIS

Tsunami are described in the Tectonic Forces chapter as damaging waves that result from the sharp jolt to the water from a powerful geologic event such as undersea earthquakes or volcanic eruptions. Landslides, meteorite impacts, or any other jolt to ocean water may form a tsunami. Tsunami can travel at speeds of 800 kilometers per hour (500 miles per hour). Tsunami have small wave heights and long wavelengths so they are usually unnoticed at sea. As the wave rides up the continental shelf the wave height increases.

The wave speed of a tsunami is also slowed by friction with the shallower ocean floor, which causes the wavelength to decrease, creating a much taller wave called a run-up. Many people caught in a tsunami have no warning of its approach. Since the wavelength is long, a long time can pass between crests or troughs onshore. In 1755 in Lisbon, an offshore earthquake caused a great deal of damage on land. People rushed to the open space of the shore and discovered that the water was flowing seaward fast. The trough of the tsunami wave reached shore first. People who went out onto the open beach were drowned when the crest of the wave reached shore.

TIDAL WAVES

Exposed Shore during low Tide
Tides are the daily rise and fall of sea level at any given place. The pull of the Moon’s gravity on Earth is the primarily cause of tides and the pull of the Sun’s gravity on Earth is the secondary cause. The Moon has a greater effect because, although it is much smaller than the Sun, it is much closer. The Moon’s pull is about twice that of the Sun’s.

Daily Tide Patterns

To understand the tides it is easiest to start with the effect of the Moon on Earth. As the Moon revolves around our planet, its gravity pulls Earth toward it. The lithosphere is unable to move much but the water above it is pulled by the gravity and a bulge is created. This bulge is the high tide beneath the Moon. The Moon’s gravity then pulls the Earth toward it, leaving the water on the opposite side of the planet behind. This creates a second high tide bulge on the opposite side of Earth from the Moon. These two water bulges on opposite sides of the Earth aligned with the Moon are the high tidesClick here to learn more. Since so much water is pulled into the two high tides, low tides form between the two high tides. As the Earth rotates beneath the Moon, a single spot will experience two high tides and two low tides every day. The tidal range is the difference between the ocean level at high tide and the ocean at low tide. The tidal range in a location depends on a number of factors, including the slope of the seafloor. Water appears to move a greater distance on a gentle slope than on a steep slope.

Spring tide Monthly Tide Patterns

Waves are additive so when the gravitational pull of the Sun and Moon are in the same direction, the high tides add and the low tides add. Highs are higher and lows are lower than at other times through the month. These more extreme tides, with a greater tidal range, are called spring tides. Spring tides don’t just occur in the spring; they occur whenever the Moon is in a new-moon or full-moon phase, about every 14 days. The National Oceanic and Atmospheric Administration (NOAA) has a simple diagram of this process.

Neap tide

Neap tides are tides that have the smallest tidal range, and they occur when the Earth, the Moon, and the Sun form a 90 degree angle. They occur exactly halfway between the spring tides, when the Moon is at first or last quarter. How do the tides add up to create neap tides? The Moon’s high tide occurs in the same place as the Sun’s low tide and the Moon’s low tide in the same place as the Sun’s high tide. At neap tides, the tidal range relatively small. Here is another simple animation of spring and neap tides from NOAA. High tides occur about twice a day, about every 12 hours and 25 minutes. The reason is that the Moon takes 24 hours and 50 minutes to rotate once around the Earth so the Moon is over the same location 24 hours and 50 minutes later. Since high tides occur twice a day, one arrives each 12 hours and 25 minutes. What is the time between a high tide and the next low tide? This animation shows the effect of the Moon and Sun on the tides.

Some coastal areas do not follow this pattern at all. These coastal areas may have one high and one low tide per day or a different amount of time between two high tides. These differences are often because of local conditions, such as the shape of the coastline that the tide is entering.


ENSO (El Niño Southern Oscillation)

Thermocline: Large Temperature Change over a short depth.

To a great extent, warm, buoyant water stays near the upper 200m of the ocean.  Winds and the Coriolis effect drive surface ocean currents, but thermohaline circulation drives deep ocean circulation.  Where the warm surface water meet the cooler deep water, there is a rapid change in temperature over a short change in depth.  This is a thermocline.

In the Pacific Ocean, Equatorial Easterly winds blow consistently from east to wind from Peru toward Australia.  This pushes the warm surface water towards Australia and allows the cooler, deeper waters to rise to the surface near Peru. A wedge of warm water gets progressively deeper as you near Australia.  This is the normal, expected situation that happens most of the time. This is called La Nada. However, once in a while, perhaps every 7-12 years, the easterly winds slow down and the warm water extends all the way to the Peruvian coast.  This event leads to more rain in Peru and the water warm forces cool-water fish to move away.  This happens around Christmas and is called an El Niño.  In contrast, if the easterly winds are stronger than usual, the warm water wedge extend a shorter distance from Australia and the cool water extends farther from Peru.  This is a La Niña.

ENSO situation: El Nino, La Nina, Neutral. Note the thermocline, surface temperatures, and cloud locations.


Since these events are constantly shifting between the extremes of El Niño and La Niña in the southern Pacific, the phenomenon is called the El Niño Southern Oscillation, or ENSO.  It is not well understood what creates the shift from one extreme to the other, but we are able to predict a few months in advance what situation to expect.  This prediction is based on monitoring sea surface temperatures and comparing existing conditions with the long term average temperatures.


STUDYING THE SEA FLOOR

Bathymetric map of the Juan de Fuca Plate.
Oceanographers like to say that we know more about the dark side of the Moon than we do about the oceans. That statement is doubly true of the seafloor. Although modern technology has allowed us to learn more about the seafloor, vast regions remain unexplored. Scuba divers can only dive to about 40 meters and they cannot stay down there for very long. Although this is good for researching the organisms and ecosystems very near a coast, most oceanic research requires accessing greater depths.

MAPPING

In the Plate Tectonics chapter, you learned that echo sounders designed to locate enemy submarines allowed scientists to create bathymetric maps of the seafloor. Prior to this advance, explorers mapped a small amount of the seafloor by painstakingly dropping a line over the side of a ship to measure the depth at one tiny spot at a time.

SAMPLING REMOTELY

Samples of seawater from different depths in the water column are needed to understand ocean chemistry. To do this bottles are placed along a cable at regular depths and closed as a weight is dropped down the cable. The water trapped in the bottle can be analyzed later in a laboratory. Scientists are also interested in collecting rock and sediment samples from the seafloor. A dredge is a giant rectangular bucket that is dragged along behind a ship to collect loose rocks. Gravity corers are metal tubes that fall to the seafloor and slice into the sediments to collect a sample. The research vessel, the Joides Resolution, drills deep into the seafloor to collect samples of the sediment and ocean crust. Scientists analyze the samples for chemistry and paleomagnetism.

SUBMERSIBLES

Samples of seawater and rocks can be collected directly by scientists in a submersible. These subs can take scientists down to make observations and the subs have arms for collecting samples. The submersible Alvin is an HOV, a human operated vehicle. Alvin can dive up to 4,500 m beneath the ocean surface and has made more than 4000 dives since 1964. Other submersibles can dive deeper. View a slide show of DSV Alvin and its history from the Woods Hole Oceanographic Institution

REMOTELY OPERATED VEHICLE

To avoid the expense, dangers, and limitations of human missions under the sea, remotely operated vehicles or ROV’s, allow scientists to study the ocean’s depths by using small vehicles carrying cameras and scientific instruments. ROVs were used to study the Titanic, which would have been far too dangerous for a manned sub to enter. Scientists control ROVs electronically with sophisticated operating systems.


OCEAN RESOURCES

LIVING RESOURCES

Commercial Salmon Fishing

The ocean provides important living and nonliving resources. To be maintained for future use, these resources must be managed sustainably. Most fish are caught by lines or nets as they swim in the open waters of the ocean. Some species of fish are being over-harvested, which means their rate of reproduction cannot keep up with the rate at which people consume them. Bottom trawling is a method of fishing that involves towing a weighted net across the seafloor to harvest fish. In many areas where bottom trawling is done, ecosystems are severely disturbed by the large nets. For this reason, in a few areas in the world, laws limit bottom trawling to waters not more than 1,000 m deep or waters far from protected and sensitive areas. Still these actions protect some of the seafloor. Besides food, ocean organisms have other uses. Some provide us with medications.

NONLIVING RESOURCES

Manganese Nodules on Ocean Floor

Oil and natural gas are the most valuable non-living resources taken from the ocean. Extracting these resources requires drilling into the seafloor. Oil platforms have dozens of oil wells that are drilled in places where the ocean is sometimes 2,000 m deep. A description of the Deepwater Horizon oil spill affecting the Gulf of Mexico is located in the Human Actions and Earth’s Waters chapter. The seafloor has some valuable minerals. Manganese nodules containing manganese, iron, copper, nickel, phosphate, and cobalt may be as small as a pea or as large as a basketball. Estimates are that there may be as much as 500 billion tons of nodules on the seafloor. The minerals in manganese nodules have many uses in the industrial world, but currently they are not being mined. Think back to the discussion of ore deposits in the Earth’s Minerals chapter. Why do you think these seafloor resources are not being mined?
