LEARNING OUTCOMES

• Describe the various aspects and elements of weather and atmospheric water.
• Explain how air masses and weather fronts together form mid-latitude cyclones.
• Describe the three phases a thunderstorm goes through in it’s life cycle.
• Determine the causes and geographic location of most tornadoes around the world.
• Describe the genesis of hurricanes formation
• Compare the difference between blizzards lake effects, and heat waves.

WEATHER AND ATMOSPHERIC WATER

ELEMENTS OF WEATHER

HUMIDITY

Humidity is the amount of water vapor in the air in a particular spot. We usually use the term to mean relative humidity, the percentage of water vapor a certain volume of air is holding relative to the maximum amount it can contain. If the humidity today is 80%, it means that the air contains 80% of the total amount of water it can hold at that temperature. What will happen if the humidity increases to more than 100%? The excess water condenses and forms precipitation. Since warm air can hold more water vapor than cool air, raising or lowering temperature can change air’s relative humidity. The temperature at which air becomes saturated with water is called the air’s dew point. This term makes sense, because water condenses from the air as dew if the air cools down overnight and reaches 100% humidity.

CLOUDS

Fog is a cloud located at or near the ground . When humid air near the ground cools below its dew point, fog is formed. The several types of fog that each form in a different way. Radiation fog forms at night when skies are clear and the relative humidity is high. As the ground cools, the bottom layer of air cools below its dew point. Tule fog is an extreme form of radiation fog found in some regions. San Francisco, California, is famous for its summertime advection fog. Warm, moist Pacific Ocean air blows over the cold California current and cools below its dew point. Sea breezes bring the fog onshore. Steam fog appears in autumn when cool air moves over a warm lake. Water evaporates from the lake surface and condenses as it cools, appearing like steam. Warm humid air travels up a hillside and cools below its dew point to create upslope fog.

PRECIPITATION

Precipitation is an extremely important part of weather. Some precipitation forms in place. The most common precipitation comes from clouds. Rain or snow droplets grow as they ride air currents in a cloud and collect other droplets. They fall when they become heavy enough to escape from the rising air currents that hold them up in the cloud. One million cloud droplets will combine to make only one rain drop ! If temperatures are cold, the droplet will hit the ground as a snowflake.

AIR MASSES

An air mass is a large body of air that has similar characteristics of temperature and humidity within it. An air mass acquires these characteristics above an area of land or water known as its source region. When the air mass sits over a region for several days, or longer, it picks up the distinct temperature and humidity characteristics of that region.

Where an air mass receives it’s characteristics of temperature and humidity is called the source region. Air masses are slowly pushed along by high-level winds, when an air mass moves over a new region, it shares its temperature and humidity with that region. The temperature and humidity of a particular location depends partly on the characteristics of the air mass that sits over it. Storms arise if the air mass and the region it moves over have different characteristics. For example, when a colder air mass moves over warmer ground, the bottom layer of air is heated. That air rises, forming clouds, rain, and sometimes thunderstorms.

A temperature inversion happens when a warmer air mass travels over colder ground, the bottom layer of air cools and, because of its high density, is trapped near the ground. Normally, higher altitude air is cooler than lower altitude air, but in a temperature inversion, warmer air is above cooler air.

In general, cold air masses tend to flow toward the equator and warm air masses tend to flow toward the poles. This brings heat to cold areas and cools down areas that are warm. It is one of the many processes that act towards balancing out the planet’s temperatures. Air masses are slowly pushed along by high-level winds. When an air mass moves over a new region, it shares its temperature and humidity with that region. So the temperature and humidity of a particular location depends partly on the characteristics of the air mass that sits over it. Air masses are classified based on their temperature and humidity characteristics. Below are examples of how air masses are classified over North America.

• Maritime tropical (mT) – moist, warm air mass
• Continental tropical (cT) – dry, warm air mass
• Maritime polar (mP) – moist, cold air mass
• Continental polar (cP) – dry, cold air mass

WEATHER FRONTS

When two air masses meet together, the boundary between the two is called a weather front. At a front, the two air masses have different densities, based on temperature and humidity, and do not easily mix. One air mass rises above the other, creating a low pressure zone. If the lifted air is moist, there will be condensation and precipitation. Winds are common at a front. The greater the temperature and humidity difference between the two air masses, the stronger the winds will be. Fronts are the main cause of stormy weather. There are four types of fronts.  Three are mobile and one is stationary. Fronts are named by the type of new arriving air mass. A cold front is when a cold air mass is displacing a warmer air mass.

STATIONARY FRONTS

At a stationary front the air masses do not move. A front may become stationary if an air mass is stopped by a barrier, such as a mountain range. A stationary front may bring days of rain, drizzle, and fog. Winds usually blow parallel to the front, but in opposite directions. After several days, the front will likely break apart. If the wind picks up documents and envelopes, it’s called a stationery front, not to be confused with a stationary front.

COLD FRONTS

Along the cold front, the denser, cold air pushes up the warm air, causing the air pressure to decrease. If the humidity is high enough, some types of cumulus clouds will grow. High in the atmosphere, winds blow ice crystals from the tops of these clouds to create cirrostratus and cirrus clouds. At the front, there will be a line of rain showers, snow showers, or thunderstorms with blustery winds. A squall line is a line of severe thunderstorms that forms along a cold front. Generally, a cold front has a steeper angle where the air masses meet and the warm air is forced up both high and faster.  This creates tall clouds which quickly release energy in as small space. Expect brief downpours. Behind the front is the cold air mass. This mass is drier so precipitation stops. The weather may be cold and clear or only partly cloudy. Winds may continue to blow into the low pressure zone at the front. The weather at a cold front varies with the season.

• spring and summer: The air is unstable so thunderstorms or tornadoes may form.
• spring: If the temperature gradient is high, strong winds blow.
• autumn: Strong rains fall over a large area.
• winter: The cold air mass is likely to have formed in the frigid arctic so there are frigid temperatures and heavy snows.

WARM FRONTS

Along a warm front, a warm air mass slides over a cold air mass. When warm, less dense air moves over the colder, denser air, the atmosphere is relatively stable. The transition from cold air to warm air takes place gradually over a long distance compared to a cold front so the first signs of changing weather appear long before the front is actually over you. Initially, the air is cold: the cold air mass is above you and the warm air mass is above it. High cirrus clouds mark the transition from one air mass to the other. Over time, cirrus clouds become thicker and cirrostratus clouds form. As the front approaches, altocumulus and altostratus clouds appear and the sky turns gray. In winter, snowflakes fall. The clouds thicken and nimbostratus clouds form. Snowfall increases. Winds grow stronger as the low pressure approaches. As the front gets closer, the cold air mass is just above you but the warm air mass is not too far above that. The weather worsens. As the warm air mass approaches, temperatures rise and snow turns to sleet and freezing rain. Warm and cold air mix at the front, leading to the formation of stratus clouds and fog.

OCCLUDED FRONTS

An occluded front usually forms around a low pressure system. The occlusion starts when a cold front catches up to a warm front. The air masses, in order from front to back, are cold, warm, and then cold again. The Coriolis Effect curves the boundary where the two fronts meet towards the pole. If the air mass that arrives third is colder than either of the first two air masses, that air mass slips beneath them both. This is called a cold occlusion. If the air mass that arrives third is warm, that air mass rides over the other air mass. This is called a warm occlusion. The weather at an occluded front is especially fierce right at the occlusion. Precipitation and shifting winds are typical. A single occluded front in the fall and winter can impact a region from Hudson Bay to the Gulf Mexico and produce several feet of snow in severe cases.

At the center of each air mass is typically a high pressure. Where these air masses meet is a weather front. When they meet, one mass rises and creates a local low pressure along the front. This means that weather is typically sunny within air masses, but their temperatures could vary with the season and humidity could vary based on the source region of the air mass.

Often, several weather fronts interact with other fronts. Together, they form a larger rotating system called a mid-latitude cyclone. This type of cyclone will be discussed later in this chapter, but as an introduction it is a low pressure system that is usually mixing warmer air from the south (in the Northern Hemisphere) and colder air from the north.

EXTREME WEATHER

HEAT WAVES

Even more insidious are the deadliest weather phenomena, a heat wave. A heat wave is different for different locations; it is a long period of hot weather, at least 86° F (30° C) for at least three days in cooler locations but much more in hotter locations. Heat waves have increased in frequency and duration in recent years. In the image to the right, a high pressure zone kept the jet stream further north than normal for August which allow hot air to shift far north.

THUNDERSTORMS

Weather happens every day, but only some days have storms. Storms vary immensely depending on whether they’re warm or cold, coming off the ocean or off a continent, occurring in summer or winter, and many other factors. The effects of storms also vary depending on whether they strike a populated area or a natural landscape. Hurricane Katrina is a good example, since the flooding after the storm severely damaged New Orleans, while a similar storm in an unpopulated area would have done little damage. Thunderstorms are extremely common: Worldwide there are 14 million per year; that’s 40,000 per day! Most drop a lot of rain on a small area quickly, but some are severe and highly damaging. They form when ground temperatures are high, ordinarily in the late afternoon or early evening in spring and summer. The two figures below show two stages of thunderstorm buildup.

THUNDERSTORM GENESIS

All thunderstorms go through a three-stage life cycle. The first stage is called the cumulus stage, where an air parcel is forced to rise, cool, and condense and develop into a cumulus cloud. Water vapor condenses at the altitude called the Lifting Condensation Level.  The exact altitude for condensation varies depending on temperature and humidity (relative humidity) of the rising air parcel. The process of water vapor condensing into liquid water releases large quantities of latent heat, which makes the air within the cloud warmer, and unstable.  The instability causes the cloud to continue to grow upward like a hot air balloon. These rising air parcels, called updrafts, prevent small water droplets from falling from the cloud. But once the water droplets become too large heavy for the updrafts to hold up, the moisture begins to fall as precipitation and downdrafts happen within the cloud. The downdrafts also begin to pull cold, dry air from outside the cloud toward the ground in a process called entrainment. Once the precipitation begins to fall from the cloud, the storm has reached the mature stage. During this stage, updrafts and downdrafts exist side-by-side and the cumulonimbus is called a cell. If the updrafts reach the top of the troposphere, the cumulus cloud will begin to spread outward creating a defined anvil. At the same time, the downdrafts spread within the cloud and at first make the cloud become wider, but eventually overtaking the updrafts. Cool downdrafts form when precipitation and the cool air from entrainment are dragged down to the lower regions of a thunderstorm. It is also during the mature stage when the storm is most intense producing strong, gusting winds, heavy precipitation, lightning, and possibly small hail.

Once the downdrafts overtake the updrafts, which also prevents the release of latent heat energy, the thunderstorm will begin to weaken into the third and final stage, called the dissipating stage. During this stage, light precipitation and downdrafts become the dominate feature within the cloud as it weakens. In all, only twenty percent of the moisture within the cloud fell as precipitation whereas the other eighty percent evaporates back into the atmosphere.

With severe thunderstorms, the downdrafts are so intense that when they hit the ground it sends warm air from the ground upward into the storm. The warm air gives the convection cells more energy. Rain and hail grow huge before gravity pulls them to Earth. Severe thunderstorms can last for hours and can cause a lot of damage because of high winds, flooding, intense hail, and tornadoes. Thunderstorms can form individually or in squall lines along a cold front. In the United States, squall lines form in spring and early summer in the Midwest where the maritime tropical (mT) air mass from the Gulf of Mexico meets the continental polar (cP) air mass from Canada. So much energy collects in cumulonimbus clouds that a huge release of electricity, called lightning, may result. The electrical discharge may be between one part of the cloud and another, two clouds, or a cloud and the ground. Lightning heats the air so that it expands explosively. The loud clap is thunder. Light waves travel so rapidly that lightning is seen instantly. Sound waves travel much more slowly, so a thunderclap may come many seconds after the lightning is spotted. Thunderstorms kill approximately 200 people in the United States and injure about 550 Americans per year, mostly from lightning strikes. Have you heard the common misconception that lightning doesn’t strike the same place twice? In fact, lightning strikes the New York City’s Empire State Building about 100 times per year..

Tornadoes

Tornadoes, also called twisters, are fierce products of severe thunderstorms. As air in a thunderstorm rises, the surrounding air races in to fill the gap, forming a funnel. A tornado lasts from a few seconds to several hours. The average wind speed is about 177 kph (110 mph), but some winds are much faster. A tornado travels over the ground at about 45 km per hour (28 miles per hour) and goes about 25 km (16 miles) before losing energy and disappearing.

An individual tornado strikes a small area, but it can destroy everything in its path. Most injuries and deaths from tornadoes are caused by flying debris. In the United States an average of 90 people are killed by tornadoes each year. The most violent two percent of tornadoes account for 70% of the deaths by tornadoes. Tornadoes form at the front of severe thunderstorms. Lines of these thunderstorms form in the spring where where maritime tropical (mT) and continental polar (cP) air masses meet. Although there is an average of 770 tornadoes annually, the number of tornadoes each year varies greatly.

Since 2007, the intensity of tornadoes is assigned with the Enhanced Fujita Scale, which assigns a value based on both wind speed and damage. Prior to 2007, the (non-Enhanced) Fujita scale used only wind speed.  However humans aren’t necessarily interested in wind speed, we want to know what the impact of the wind will be. So the Enhanced Fujita Scale includes building damage.

The average diameter of tornadoes is about 50 meters, with the record largest being 2.5 miles. The clouds above the funnel cloud will be much larger.

Cyclones

There are two types of cyclones: middle latitude (mid-latitude) cyclones and tropical cyclones. Mid-latitude cyclones are the main cause of winter storms in the middle latitudes. Tropical cyclones are also known as hurricanes.

An anticyclone is the opposite of a cyclone. An anticyclone’s winds rotate clockwise in the Northern Hemisphere around a center of high pressure. Air comes in from above and sinks to the ground. High pressure centers generally have clear weather.

MID-LATITUDE CYCLONES

Mid-latitude cyclones, sometimes called extratropical cyclones, form at the polar front when the temperature difference between two air masses is large. These air masses blow past each other in opposite directions. Coriolis Effect deflects winds to the right in the Northern Hemisphere, causing the winds to strike the polar front at an angle. Warm and cold fronts form next to each other. Most winter storms in the middle latitudes, including most of the United States and Europe, are caused by mid-latitude cyclones. The warm air at the cold front rises and creates a low pressure cell. Winds rush into the low pressure and create a rising column of air. Since the rising air is moist, rain or snow falls. Mid-latitude cyclones form in winter in the mid-latitudes and move eastward with the westerly winds. These two- to five-day storms can reach 1,000 to 2,500 km (625 to 1,600 miles) in diameter and produce winds up to 125 km (75 miles) per hour. Like tropical cyclones, they can cause extensive beach erosion and flooding. Mid-latitude cyclones are especially fierce in the mid-Atlantic and New England states where they are called nor’easters, because they come from the northeast. About 30 nor’easters strike the region each year.

TROPICAL CYCLONES: HURRICANES

Tropical cyclones have many names. They are called hurricanes in the North Atlantic and eastern Pacific oceans, typhoons in the western Pacific Ocean, tropical cyclones in the Indian Ocean, and willi-willi’s in the waters near Australia. By any name, they are the most damaging storms on Earth. Hurricanes arise in the tropical latitudes (between 10°  and 25 ° N) in summer and autumn when sea surface temperature are 28°C (82°F) or higher. The warm seas create a large humid air mass. The warm air rises and forms a low pressure cell, known as a tropical depression. Thunderstorms materialize around the tropical depression. If the temperature reaches or exceeds 28° C (82° F) the air begins to rotate around the low pressure.  As the air rises, water vapor condenses, releasing energy from latent heat. If wind shear (upper atmosphere winds) is low, the storm builds into a hurricane within two to three days. Hurricanes are huge with high winds. The exception is the relatively calm eye of the storm where air is rising upward. Rainfall can be as high as 2.5 cm (1″) per hour, resulting in about 20 billion metric tons of water released daily in a hurricane. The release of latent heat generates enormous amounts of energy, nearly the total annual electrical power consumption of the United States from one storm. Hurricanes can also generate tornadoes.

At the center or heart of the hurricane is called the eye. Within the eye of a hurricane, winds are light, precipitation is minimal, and occasionally the skies above are clear. It is the calm region of the tropical storm, but that is what makes it so dangerous. Many people tend to go outside as the eye moves overhead because they believe the storm is over. But what some don’t realize is that “round two” is coming from behind.

Moving away from the eye wall are organized, intense thunderstorms, called spiral rain bands, that rotate around and toward the storm’s eye wall. These rain bands are the first

Hurricanes are assigned to categories based on their wind speed. The categories are listed on the Saffir-Simpson Scale.

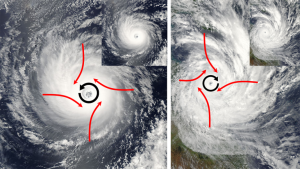

Hurricanes move with the prevailing winds. In the Northern Hemisphere, they originate in the trade winds and move to the west. When they reach the latitude of the westerlies, they switch direction and travel toward the north or northeast. Hurricanes may cover 800 km (500 miles) in one day. Damage from hurricanes comes from the high winds, rainfall, and storm surge. Storm surge occurs as the storm’s low pressure center comes onto land, causing the sea level to rise unusually high. A storm surge is often made worse by the hurricane’s high winds blowing seawater across the ocean onto the shoreline. Flooding can be devastating, especially along low-lying coastlines such as the Atlantic and Gulf Coasts. Hurricane Camille in 1969 had a 7.3 m (24 foot) storm surge that traveled 125 miles (200 km) inland. Hurricanes typically last for 5 to 10 days. Over cooler water or land, the hurricane’s latent heat source shut downs and the storm weakens. When a hurricane disintegrates, it is replaced with intense rains and tornadoes.

There are about 100 hurricanes around the world each year, plus many smaller tropical storms and tropical depressions. As people develop coastal regions, property damage from storms continues to rise. However, scientists are becoming better at predicting the paths of these storms and fatalities are decreasing. There is, however, one major exception to the previous statement: Hurricane Katrina.

For over a decade, the conversation in the United States over hurricanes was directed toward Hurricane Katrina. But in late October 2012, a Category 3 hurricane called Hurricane Sandy, sometimes called Superstorm Sandy, struck the eastern coast of the United States. It is estimated that the storm system caused $68 billion in damage and killed nearly 300 people.

What made Hurricane Sandy different from most tropical storms was how powerful it was so late in the hurricane season. The concern is that as the planet warms from anthropogenic (human-enhanced) climate change, the oceans will likely warm up allow hurricanes to become stronger, travel farther toward the poles, and the hurricane season last longer.

WEATHER, CLIMATE, AND LANDFORMS

BLIZZARDS AND LAKE EFFECTS

A blizzard is distinguished by certain conditions:

• Temperatures below –7°C (20° F); –12°C (10° F) for a severe blizzard.
• Winds greater than 56 kmh (35 mph); 72 kmh (45 mph) for a severe blizzard.
• Snow so heavy that visibility is 2/5 km (1/4 mile) or less for at least three hours; near zero visibility for a severe blizzard.

Blizzards happen across the middle latitudes and toward the poles, usually as part of a mid-latitude cyclone. Blizzards are most common in winter, when the jet stream has traveled south and a cold, northern air mass comes into contact with a warmer, semitropical air mass. The very strong winds develop because of the pressure gradient between the low pressure storm and the higher pressure west of the storm. Snow produced by the storm gets caught in the winds and blows nearly horizontally. Blizzards can also produce sleet or freezing rain.

In winter, a continental polar air mass travels down from Canada. As the frigid air travels across one of the Great Lakes, it warms and absorbs moisture. When the air mass reaches the leeward side of the lake, it is very unstable and it drops tremendous amounts of snow. This lake-effect snow falls on the snowiest, metropolitan areas in the United States: Buffalo and Rochester, New York. If the lakes have frozen over, then there’s less moisture moving from the lakes to the air mass, and there’s less snow.

RAINSHADOW (OROGRAPHIC EFFECT)

Air masses coming off the ocean to the land are generally humid, especially if the ocean is warm. That humid air has enough energy to keep water in vapor form but as air rises, it loses energy and cools. If the air rises high enough the air loses enough energy, some of the water vapor will condense and form clouds, perhaps leading to precipitation. One way air rises is when it’s forced to go up and over a mountain. Air coming down the opposite side is gaining kinetic energy (going faster) and is able to hold water in vapor form. The ocean side of the the mountain gets precipitation while the land side is dryer.

COLLECTING WEATHER DATA

Weather forecasts are better than they ever have been. According to the World Meteorological Organization (WMO), a 5-day weather forecast today is as reliable as a 2-day forecast was 20 years ago! This is because forecasters now use advanced technologies to gather weather data, along with the world’s most powerful computers. Together, the data and computers produce complex models that more accurately represent the conditions of the atmosphere. These models can be programmed to predict how the atmosphere and the weather will change. Despite these advances, weather forecasts are still often incorrect. Weather is extremely difficult to predict because it is a complex and chaotic system.

To make a weather forecast, the conditions of the atmosphere must be known for that location and for the surrounding area. Temperature, air pressure, and other characteristics of the atmosphere must be measured and the data collected.

THERMOMETER

Thermometers measure temperature. In an old-style mercury thermometer, mercury is placed in a long, very narrow tube with a bulb. Because mercury is temperature sensitive, it expands when temperatures are high and contracts when they are low. A scale on the outside of the thermometer matches up with the air temperature. Some modern thermometers use a coiled strip composed of two kinds of metal, each of which conducts heat differently. As the temperature rises and falls, the coil unfolds or curls up tighter. Other modern thermometers measure infrared radiation or electrical resistance. Modern thermometers usually produce digital data that can be fed directly into a computer.

BAROMETER

Meteorologists use barometers to measure air pressure. A barometer may contain water, air, or mercury, but like thermometers, barometers are now mostly digital. A change in barometric pressure indicates that a change in weather is coming. If air pressure rises, a high pressure cell is on the way and clear skies can be expected. If pressure falls, a low pressure cell is coming and will likely bring storm clouds. Barometric pressure data over a larger area can be used to identify pressure systems, fronts, and other weather systems.

WEATHER STATIONS

Weather stations contain some type of thermometer and barometer. Other instruments measure different characteristics of the atmosphere such as wind speed, wind direction, humidity, and amount of precipitation. These instruments are placed in various locations so that they can check the atmospheric characteristics of that location. According to the WMO, weather information is collected from 15 satellites, 100 stationary buoys, 600 drifting buoys, 3,000 aircraft, 7,300 ships, and some 10,000 land-based stations. The official weather station used by the National Weather Service is called the Automated Surface Observing System (ASOS).RADIOSONDESA radiosonde is a balloon that measures atmospheric characteristics, such as temperature, pressure, and humidity as it moves through the air. Radiosondes in flight can be tracked to obtain wind speed and direction. Radiosondes use a radio to communicate the data they collect to a computer. Radiosondes are launched from about 800 sites around the globe twice daily to provide a profile of the atmosphere. Radiosondes can be dropped from a balloon or airplane to make measurements as they fall. This is done to monitor storms, for example, since they are dangerous places for airplanes to fly.

RADAR

Radar stands for Radio Detection and Ranging. A transmitter sends out radio waves that bounce off the nearest object and then return to a receiver. Weather radar can sense many characteristics of precipitation: its location, motion, intensity, and the likelihood of future precipitation. Doppler radar can also track how fast the precipitation falls. Radar can outline the structure of a storm and can be used to estimate its possible effects.

SATELLITES

Weather satellites have been increasingly important sources of weather data since the first one was launched in 1952 and are the best way to monitor large scale systems, such as storms. Satellites are able to record long-term changes, such as the amount of ice cover over the Arctic Ocean in September each year. They also observe all energy from all wavelengths in the electromagnetic spectrum. The flagship of the National Weather Service is the Geostationary Operational Environmental Satellites (GOES). These satellites are the ones you see on the nightly news where it looks like the clouds are moving, but not the planet. That is because these satellites are “geo-fixed” on a particular location over Earth rotating around the planet as fast as Earth’s rotation at a distance of over 23,000 miles above the planet. There are basically three different types of GOES: visible, infrared, and water vapor. Visible light images record storms, clouds, fires, and smog. Infrared images record clouds, water and land temperatures, and features of the ocean, such as ocean currents. The final type of GOES imagery is water vapor. This type of imagery looks at the moisture content in the upper-half of the atmosphere. This is important for determining if clouds can grow to great heights like cumulonimbus thunderstorms.

The other type of satellite commonly used in weather forecasting is called a Polar Orbiting Environmental Satellites (POES). These types of satellites fly much lower to the earth, only about 530 miles, and orbit the planet pole-to-pole. You’ve probably seen these satellites at night when you see one crossing the sky. Look for their direction and odds are they are moving northward or southward toward each pole.

Just like the weather satellites on the news, you’ve seen these images often when you are looking at natural disasters like hurricanes or volcanic eruptions, wars like have occurred in Afghanistan, Iraq, or recently in Syria. Even the Malaysian flight that “disappeared” in the Indian Ocean for weeks was ultimately discovered using polar orbiting satellites. Common types of these satellites include: Landsat, MODIS, and the Tropical Rainfall Measuring Mission (TRMM).

NUMERICAL WEATHER PREDICTION

The most accurate weather forecasts are made by advanced computers, with analysis and interpretation added by experienced meteorologists. These computers have up-to-date mathematical models that can use much more data and make many more calculations than would ever be possible by scientists working with just maps and calculators. Meteorologists can use these results to give much more accurate weather forecasts and climate predictions. In Numerical Weather Prediction (NWP), atmospheric data from many sources are plugged into supercomputers running complex mathematical models. The models then calculate what will happen over time at various altitudes for a grid of evenly spaced locations. The grid points are usually between 10 and 200 km apart. Using the results calculated by the model, the program projects weather further into the future. It then uses these results to project the weather still further into the future, as far as the meteorologists want to go. Once a forecast is made, it is broadcast by satellites to more than 1,000 sites around the world. NWP produces the most accurate weather forecasts, but as anyone knows, even the best forecasts are not always right. Weather prediction is extremely valuable for reducing property damage and even fatalities. If the proposed track of a hurricane can be predicted, people can try to secure their property and then evacuate.

Once conditions have been plotted, points of equal value can be connected by isolines. Weather maps can have many types of connecting lines. For example:

• Isotherms, likes connecting points of equal temperature. They spatially show temperature gradients and can indicate the location of a front. In terms of precipitation, what does the 0°C (32°F) isotherm show?

• Isobars are lines of equal average air pressure at sea level. Closed isobars represent the locations of high and low pressure cells.

• Isotachs are lines of constant wind speed. Where the minimum values occur high in the atmosphere, tropical cyclones may develop. The highest wind speeds can be used to locate the jet stream.

Surface weather analysis maps are weather maps that only show conditions on the ground.  However, maps showing conditions at various altitudes in the atmosphere are also created to help pilots and general weather forecasting.
